Iris·Yon
Selected work

Technical Projects

Fun things I'm building as a creative technologist.

01 synapse sensory tools · live 02 framegen ai film pipeline 03 facial mocap ARKit · Maya · C++

synapse 2026–

A suite of browser tools for visualizing the senses in combination — sound into image, image into sound, touch into light. Each hands you the mapping itself, so you compose your own cross-sensory language.

open the full suite ↗

play with it — live, in this page

the live suite — pick any sense inside to play with it, right here. open full ↗

an output

sight — a painting melted and re-timed through stacked, keyframed effects, looping straight from the tool.

the tools

  • touch live Conduct a glowing particle field with your cursor or your hands — on-device webcam, nothing uploaded.
  • sight live Stack masked effect layers on any image, keyframe every parameter on a timeline, export video or a frame sequence.
  • sound live Dissect audio into FFT spectrum, beats and bands, then bind any sound feature to any visual property.
  • tune live Split an image into zones that each pick an instrument from their colour and texture, then perform the picture.
  • the idea Every tool ships research-grounded defaults — then exposes the mapping as something you can rewrite, so the synesthesia is yours.

framegen 2026–

A story-first, generative-AI film pipeline. You write the brief — character, setting, script, mood, camera — lay your film out as a sequence of moments, and block exactly who's in each shot. FrameGen carries that blocking through design, 3D, lighting and compositing into finished cinematic frames. Runs locally over Blender, ComfyUI and a local LLM.

an output

FrameGen render — seven figures standing in a ring inside a shaft of light
seven figures blocked in a ring, one at the centre — the exact count locked, then rendered through to a finished cinematic frame.

the workbench

FrameGen app — story brief on the left, a storyboard of moments in the centre, pipeline stages across the top
the story brief drives every stage; lay your film out as moments, then move each through the pipeline.

how it works

  • story-first A brief — character, setting, script / play-by-play, mood and camera — drives every stage. Lay your film out as a sequence of moments; each becomes a shot.
  • block the shot Place figures and the camera in a 3D blockout and lock an exact head-count — the render gives you those figures, in that arrangement, every time.
  • design & direct Choose a film style and shot type — wide, close, over-shoulder, dutch — with pose and depth references; DWPose and ControlNet hold the composition.
  • staged pipeline Story → layout → design → detail → 3D form → surface → lighting → compositing → final look → sequence. Lock a stage you like; only what's downstream re-renders.
  • local & open Runs on your own machine over Blender, ComfyUI and a local LLM — no cloud, no per-render bill.

runs locally — not publicly hosted yet.

facial motion capture 2022–2023

A realtime facial motion capture application built with ARKit, C++, Swift, Python, MEL, and Autodesk Maya — developed as part of UC Berkeley's Advanced Digital Animation course with a team of four. Captures live facial animation through the front-facing camera, smooths the data using differential equations, interpolates to 24 fps, and transfers it into Maya blendshapes for final character animation.

github — irisyon/blendshapes ↗

facial rig

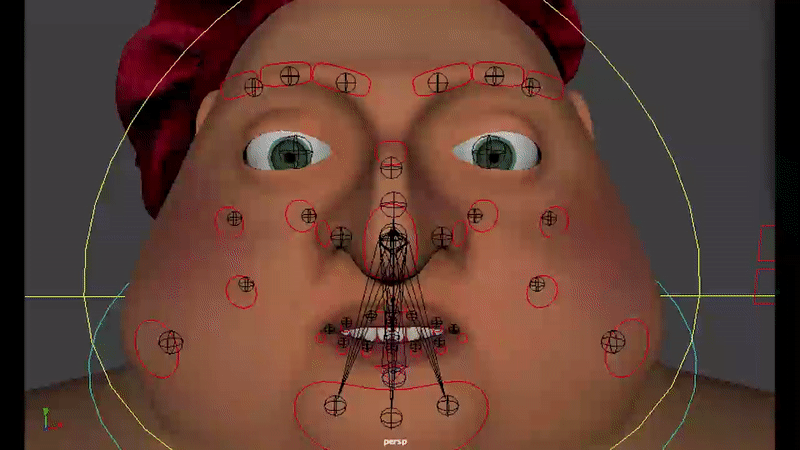

Maya facial rig with blendshape control handles
Maya facial rig with blendshape control handles — the capture data drives these directly, producing the final character animation.

character pipeline

3D character — shading, texturing and lighting breakdown
character shading, texturing, and lighting — one of the animated short film's principal characters.

live capture

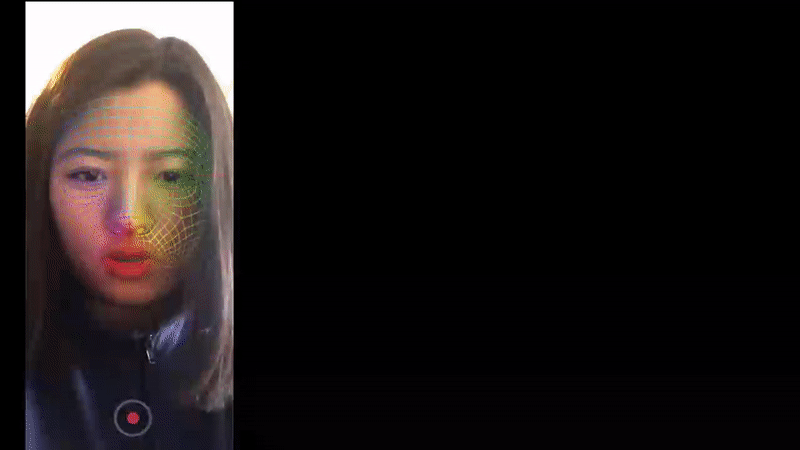

ARKit face tracking — coloured mesh overlay recorded in realtime via front-facing camera
ARKit face mesh captured in realtime — the raw data stream before smoothing and resampling.

how it works

  • capture ARKit's face-tracking API streams 52 blendshape coefficients per frame through a Swift + C++ mobile front-end using the self-facing camera — no markers, no calibration suit.
  • smooth & resample Raw ARKit data arrives at device frame rate; differential equations remove jitter and cubic interpolation resamples to exactly 24 fps to match the film's timeline.
  • blendshapes A Python + MEL pipeline maps each coefficient to a corresponding blendshape target inside Maya, so the captured performance drives the rig directly.
  • impact The tool produced the baseline facial animation for all principal characters and served as the final animation for most shots — filling a gap on a team without enough experienced animators to hand-key at that volume.
